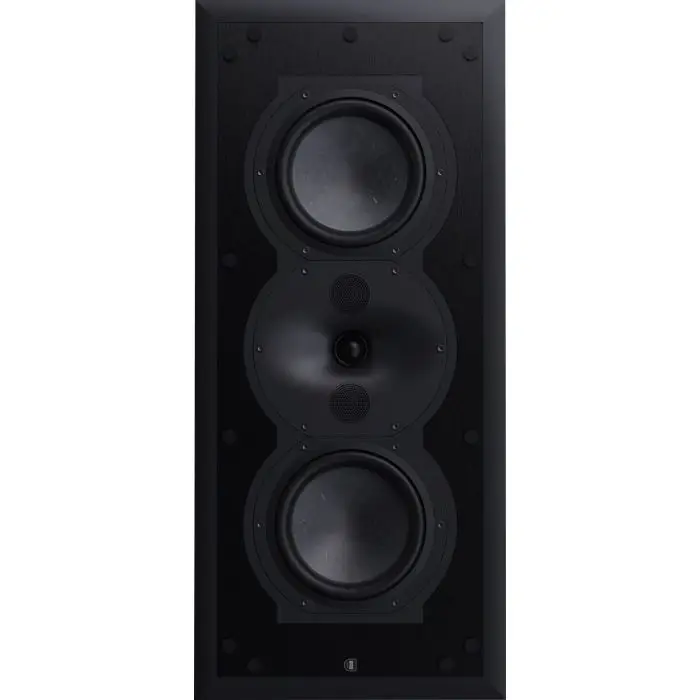

IN-WALL SPEAKER
The next level in-wall with Directivity control to even lower frequencies while enabling a DPC array and timbre matching not only in the raw materials but in the critical frequency response, power response, phase. Based on the R5t tower, the R5i-LR is THX Dominus surround and Ultra LCR certified. A true value in the medium size home theater in-wall compared to almost any in-wall on the market and can be utilized as an LCR with an acoustically transparent screen or as an LR in the Media room.
Dimensions (HxWxD): 298 x 665 x 111mm
Mounting dimensions: (HxWxD) 257 x 624 x 257 x 101.7mm
Weight: 15.9 kg
Available finishes: White grille, Black baffle
Enclosure Alignment: 3-way acoustic suspension
Driver compliment:
DCP-Array: 26mm(3) Silk dome
Woofers: 165mm(2) HPF diaphragms
Sensitivity: 89.4dB / 2.83v / 1.0m
Impedance: 4Ω nominal / 3.3Ω min
Frequency Response (+/-1.5dB): 80 - 20kHz +/-1.5dB window
Frequency Response (-10dB): 40 - 32kHz
Typical In Room bass extension: 34Hz
Recommended Amplifier Power: 50 - 250W RMS
SPL capability (100-20kHz):
113.4dB peak
111.0dB peak <3% - 2nd, 3rd Harmonics
Certification: THX Dominus, THX Ultra
