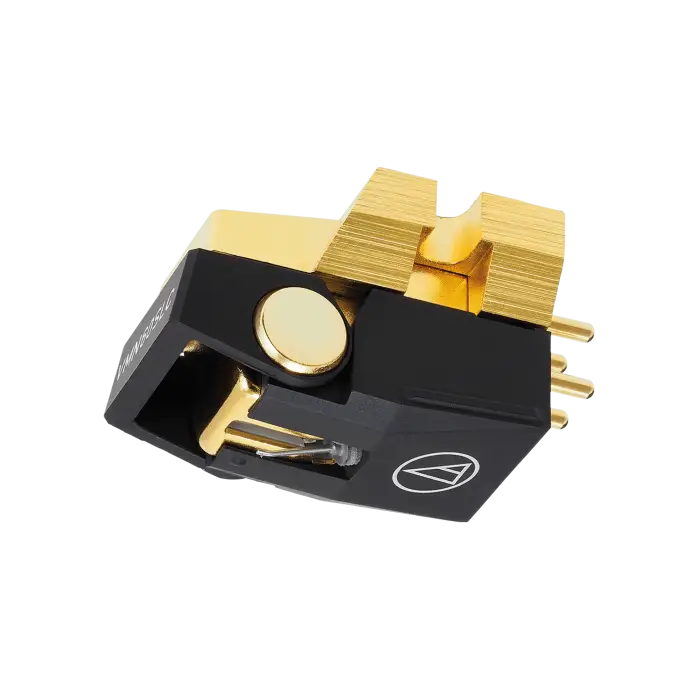

Audio Technica VM760SLC er en fremragende MM pick-up bygget med en fin aluminiums nålearm og Special Line Contact nål, der giver en ret åben og dynamisk gengivelse.
Læs anmeldelse fra hometheaterhifi her
Using an ultra-lightweight stylus tip ground to a high level of precision, we have achieved a combination of low distortion rate with fuller frequency reproduction during playback. This stylus tip extracts every possible piece of information from the grooves on a record.
- Aluminium tapered cantilever
- Para-toroidal coils improve generating efficiency
- Centre shield plate between the left and right channels reduces crosstalk
- Die-cast aluminium alloy housing reduces vibration and adds a natural electrical shield
Audio-Technica’s internationally-patented Dual Magnet design replicates the structure of the cutter head.
Instead of using a single, large magnet, the two magnets are arranged in the shape of a "V". The two magnets are positioned precisely to match the positions of the left and right channels in the stereo groove walls. Consequently, the VM design ensures outstanding channel separation, extended frequency response and superb tracking.
Para-toroidal generating system
Para-toroidal coils improve generating efficiency and offers superb linearity, since leakage of magnetic flux in this continuous and unitised magnetic circuit is low. Permeability of the cores is also optimised through the use of laminated cores.
Centre shield plate reduces crosstalk
A permalloy centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB. This is similar to the actual crosstalk value found in the grooves of the record itself.
700 Series
Top-end model fitted with the die-cast aluminium alloy housing. The body reduces the unwanted vibration and enhances the superior sound quality of high-performance line contact styli.
Special Line Contact Stylus
Special Line Contact with diamond stylus construction has the ability to track the most complex record groove.
Specifikationer:
Frekvensområde: 20-30.000 Hz
Princip: Moving Magnet
Kanalseparation v. 1 kHz (30 dB)
Udgangsspænding: 4,0 mV
Nåleslibning: Speciel Line Contact
Vægt: 8,0 g
Nåletryk: 1,8-2,2 g
Erstatningsnål: VMN60SLC
